Designing Reliable AI Workflows

An AI demo is a straight line: prompt in, answer out. An AI workflow in production is a state machine that may wait overnight for a human, retry a flaky tool, resume after a deploy, and still not double-charge a customer. Reliability comes from explicit state and idempotent effects, not from a more eloquent system prompt.

Workflow vs agent loop#

An agent loop lets the model choose the next tool under a budget. An AI workflow is a durable graph you define: steps, timers, approval nodes, compensating actions. Many products need both: a workflow engine for longevity and compliance, with model-shaped steps inside certain nodes.

If the business requires "pause for legal review" or "continue next Tuesday," you want a workflow runtime (Temporal, Step Functions, Cadence-style, or your own job + DB design) — not a long-lived HTTP request holding a chat session open.

State you must persist#

At minimum, store:

• Workflow id and version of the graph
• Current node / status
• Inputs and outputs per step (redacted as needed)
• Idempotency keys for side effects
• Who approved what, and when

Memory inside a model context is not a workflow store. Context dies with the request. Databases do not.

@dataclass
class WorkflowState:
    id: str
    version: str
    status: str  # running | waiting_human | succeeded | failed
    cursor: str  # node id
    data: dict
    idempotency: dict[str, str]

def transition(state: WorkflowState, event: str, payload: dict) -> WorkflowState:
    node = GRAPH[state.cursor]
    if node.type == "human_approval" and event != "approved":
        state.status = "waiting_human"
        return save(state)
    if node.type == "tool":
        key = f"{state.id}:{node.id}"
        result = tools.call(node.tool, payload, idempotency_key=key)
        state.data[node.id] = result
    state.cursor = node.next_on[event]
    return save(state)

Retries without duplicate disasters#

LLM timeouts and tool 500s will happen. Retry read steps freely with backoff. Retry writes only with idempotency keys or upsert semantics. Never blindly re-run "send email" or "create refund" because the worker crashed after success but before ack.

Classify errors: retryable (timeout, 429) vs terminal (validation, authz). Dead-letter the terminal path with enough trajectory for a human.

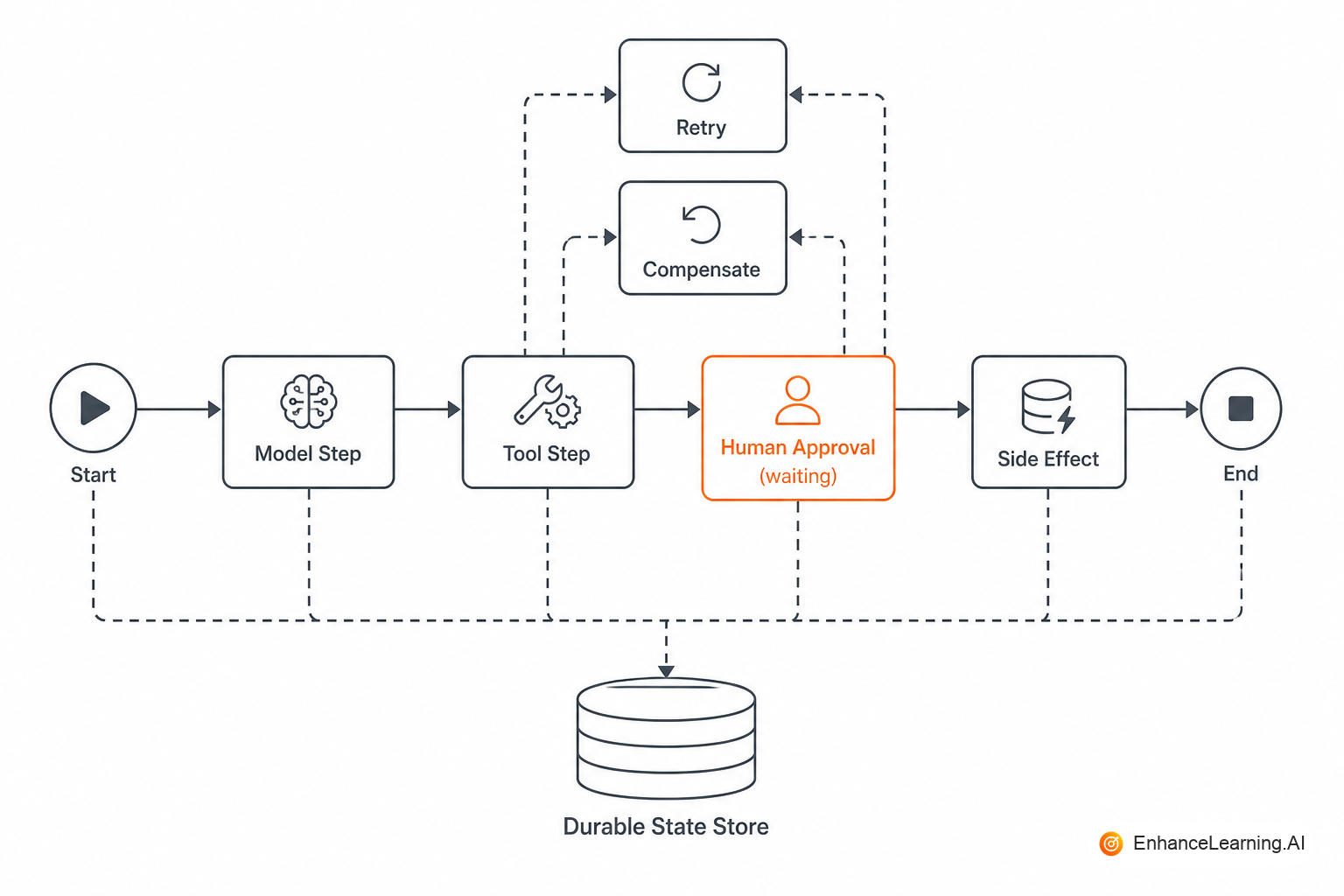

Human approval as a first-class node#

Approval is not a popup bolted on the UI. It is a workflow state: waiting, with a token or task id, expiry, and escalation. The model may draft the action; the workflow should not apply it until the event approved arrives from an authenticated actor.

Long-running execution patterns#

Where the model sits in the graph#

Typical nodes: classify, extract, draft, plan, critique. Keep side-effect nodes deterministic wrappers around APIs. Pass only the data each node needs — do not reload the entire enterprise into every prompt because the workflow "might need it."

Testing workflows#

Test the graph with deterministic fakes for tools and fixed fixtures for model nodes where you can. For model nodes, use contract tests (schema validity) plus a small golden set. Chaos-test: kill the worker mid-write and assert idempotency; expire an approval and assert the path does not proceed; inject a retryable error and assert exactly-once side effects.

If your only test is "run the happy path in a notebook," you do not have a workflow — you have a demo script.

Observability for long runs#

Expose workflow id in user-facing support tools. Emit span links from workflow steps to model traces. Alert on age of waiting_human and on retry storms. Cost should roll up per workflow run, not only per HTTP request — otherwise finance will never see the true bill for a multi-day process.

Compensating actions#

When a later step fails after an earlier write, you may need a compensating transaction (cancel reservation, post corrective note). Encode compensations as explicit nodes, not as improvised agent initiative. Agents are bad CFOs.

SLOs for AI workflows#

Traditional latency SLOs miss multi-day flows. Define SLOs on workflow outcomes:

• Time to first meaningful progress — user sees draft or status within X minutes
• Time in waiting_human — alert if approvals sit > 48 hours without escalation
• Completion rate — percent of started workflows reaching succeeded without manual rescue
• Duplicate side-effect rate — should be zero; any duplicate write is a severity-1 bug
• Cost per completed workflow — tokens + tool calls + human time if you track it

Error budgets apply: if completion rate drops after a model upgrade, roll back the alias in the gateway and freeze graph changes until evals explain the cliff. "The model is flakier this week" is not an operable SLO; "completion rate fell from 94% to 81%" is.

Pair workflow metrics with trace links. On-call should open one id and see graph cursor, last model step, last tool error, and pending approval token — not a wall of unstructured logs.

Treat human wait time as part of the product experience, not as dead air. Notify approvers with context pulled from persisted step outputs — not by asking the model to re-summarize from scratch on each ping. Every unnecessary model call during a multi-day workflow is cost and drift risk.

Summary#

Reliable AI workflows are durable state machines with model-shaped steps, not longer chat sessions. Persist artifacts, retry with idempotency, make human approval a real state, and budget steps like any other resource. Do that and "the LLM flaked" becomes an operable incident instead of an unrecoverable mess.
